OEM Pillow Block Bearings: How LDK Customizes Mounted Units

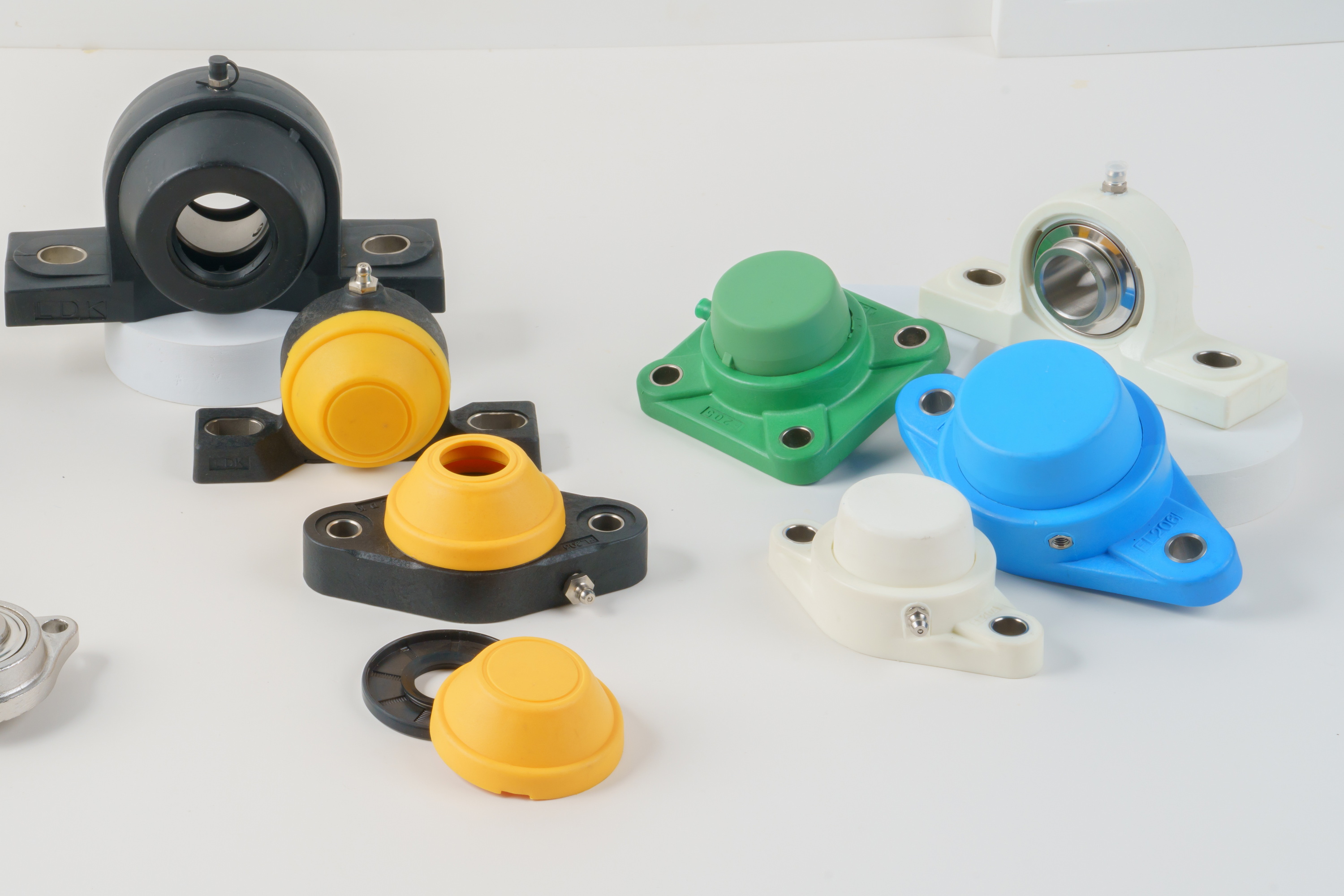

LDK waterproof thermoplastic bearing units, one of several housing platforms available for OEM customization.

OEM pillow block bearing programs rarely fail because a housing is difficult to cast. They fail because shaft, load direction, sealing environment, locking method and the destination market compliance requirements all have to align inside a single part number, and most catalogue ranges only cover the middle of that matrix. LDK, the brand of Deyuan Smart Technology (Fujian) Co., Ltd, was built around that matrix: bearings and housings produced in one place, insert bearing bore sizes from 10 mm to 140 mm, and more than 100 combinations of material and housing type.

Why off-the-shelf pillow block bearings stall custom OEM projects

A standard mounted bearing unit leaves the factory with one housing material, one locking style, one sealing arrangement and one dimensional band. That works perfectly well when a machine is designed around the bearing. It stops working when the machine is already frozen elsewhere — when the shaft is already machined for another component, the washdown protocol is fixed, the corrosive environment is written into the specification, and the destination market has its own compliance file.

In practice, OEM buyers get stuck at five specific points:

• Shaft-to-bore mismatch. A metric shaft needing an inch bore, or an intermediate size outside a catalogue band, forces either an adapter sleeve or a custom inner ring instead of a standard part.
• Locking method versus load. Set screw, concentric collar, eccentric collar and tapered adapter sleeve locking all behave differently under vibration, axial load and service disassembly. Most catalogue ranges cover one or two of these.
• Sealing versus washdown. Food, chemical and car wash environments need a different seal and lubrication strategy than an open-air mining or woodworking application.
• Housing material versus corrosion profile. A painted cast iron unit is fine in a dry workshop and inadequate on a marine deck or in a sewage treatment line.
• Certification versus destination market. RoHS, food-contact compliance and IATF-grade quality management have to travel with the goods as documents, not as assurances.

None of these are solved by holding more stock. They are solved by engineering and manufacturing capability, which is what an OEM buyer is really evaluating when they shortlist a pillow block bearing manufacturer.

The current pillow block bearing market and what it means for buyers

The global pillow block bearings market reached USD 2.8 billion in 2024, and Dataintelo projects USD 4.7 billion by 2033 at a 5.7% compound annual growth rate. The broader mounted bearing category, which covers both ball and roller housed units, was valued at approximately USD 1.48 billion in 2023 and is expected to reach USD 2.55 billion by 2033, according to Spherical Insights. Asia Pacific accounted for roughly 49.5% of mounted bearing revenue in 2025, driven largely by industrial expansion in China and India (Fortune Business Insights).

Supply is concentrated at the top. SKF, Schaeffler, Timken, NSK and NTN are widely reported to hold more than half of the global mounted bearing market between them. At the export end, China was the leading exporter of ball bearings under HS 8482 in 2024, with an export value of USD 6.53 billion (OEC). For a buyer, that combination means plenty of capacity and plenty of noise — which makes differentiation a matter of delivered evidence rather than brand recognition.

There is also a structural point that gets overlooked. ISO 113:2010 specifies the boundary dimensions for two-bolt and four-bolt plummer block housings intended for rolling bearings. That standard guarantees interchangeability of mounting geometry. It says nothing about material, sealing, locking or lubrication. Two units can be perfectly interchangeable on the bolt pattern and behave completely differently on the machine, which is precisely where customization capability starts to matter.

What LDK's customization capability actually consists of

Deyuan Smart Technology (Fujian) Co., Ltd was established in 1986 and now operates across a 90,000 m² facility in Quanzhou, Fujian Province, with approximately 130 employees, a 12-engineer R&D team and an annual output of 15,000,000 units. Around 60% of production is exported, with main markets in Europe, North America, Latin America and Oceania.

For OEM programs, the most consequential structural fact is this: LDK produces both the bearing and the housing in house. That removes the single largest source of engineering friction in housed unit projects, where a bearing supplier and a housing supplier each decline responsibility for the final assembled geometry.

LDK vertical parting automatic molding line for casting pillow block bearing housings.

What can be customized

The core portfolio covers cast iron pillow blocks, thermoplastic housed bearing units, all-stainless-steel mounted ball bearing units, Accu-Grip concentric locking units, mounted units for the air handling industry, farm implement bearings, rod ends and linkage assemblies, and spherical plain bearings. Insert bearing bore sizes run from 10 mm to 140 mm, with more than 100 combinations of material and housing type.

The dimensions customization actually covers

• Housing material: HT200 cast grey iron, high strength cast iron, cast steel, ductile iron, PBT thermoplastic, PA6 waterproof thermoplastic, 304 stainless steel, stamped zinc plated steel, and zinc alloy die-casting for miniature housings.
• Bearing material: chrome steel (GCr15 / AISI 52100), 440 stainless steel and 420 stainless steel.
• Locking style: set screw, eccentric collar, concentric collar and tapered adapter sleeve.
• Sealing and lubrication: food grade grease, silicon rubber seals, solid lubrication configurations, and special grease and internal clearance packages for high or low temperature duty.
• Appearance: thermoplastic housings in white, green or black, with other colours customizable, and dark green paint as the standard finish on cast iron housings.
• Identity and packaging: private labelling and custom packaging for OEM and distributor programs.

Thermoplastic housings can be produced in specified colours at defined MOQ, mounted with 440 or 420 stainless insert bearings.

What ODM projects add

Where the design is not yet frozen, LDK provides R&D and design strength, DFM expertise, advanced technology and equipment, prototyping in both 2D and 3D, and testing for durability, safety and performance. NDA and intellectual property protection are part of the standard engagement. One documented example came out of a fitness equipment program in the Netherlands, where LDK replaced a stainless steel linkage component with a high strength aluminium alloy design, cutting weight by 30% while passing 20 million cycles and resolving unstable electromagnetic interference in the assembly.

Certification and compliance documentation

The manufacturing system holds IATF 16949:2016 quality management certification issued by BV, covering the manufacture of bearings and bearing housings, valid to 2027-01-25, alongside ISO 9001. Occupational health and safety is certified to ISO 45001:2018 (CQM, valid to 2028-11-06) and environmental management to ISO 14001:2015 (CQM, valid to 2028-11-06).

For European Union shipments, SGS SCTC Standards Technical Services Co., Ltd Xiamen Branch has issued RoHS compliance verification reports against EU RoHS Directive (EU) 2015/863 amending 2011/65/EU. One report (certificate number XMNEC25002179201_1, issued 2025-09-22, valid to 2035-09-22) covers UCP200, UCF200, UCFC200, UCFL200, UCT200, UCFX00, UCFS300, UCFB200, UCFT200, UCPA200, UCPE200, UCAK200, UCSB200, UCPW200, UCPG200, UCTB200, UCPH200, UCST200, UK200, UK300, SER200, UC200, UCX00 and UC300 series. Additional RoHS verification reports cover specific models including UCFC205, UCF207 L3, UC206 L3, SB205, PF205, UFL002 and ETC-F-SM208.

For thermoplastic housings used in food handling, a TÜV Rheinland test report (168263398a 001, valid to 2030-05-07) verifies compliance with U.S. FDA Code of Federal Regulations Title 21 for food contact material safety.

Quality control in production

Inspection runs on three levels: self-inspection and verification, second-party audit, verification and inspection, and third-party audit, verification and inspection. The in-house laboratory, precision measuring room and dedicated workshops support fatigue life testing, tensile strength testing, noise and vibration testing, and salt spray testing. Digital inspection records accompany shipments, which allows established OEM accounts to skip incoming inspection and move parts directly to the line.

LDK reliability testing room, supporting fatigue life, tensile strength, noise and vibration, and salt spray testing.

Commercial terms and delivery

Base MOQ is 5,000 units, with standard lead time of 30 to 90 days, and flexible manufacturing that accommodates low to high volume production. For strategic accounts, scheduling across more than 3,000 SKUs lets buyers blend high volume commodity items and low volume customised lines into a single mixed container, with MOQ for specialised long-tail items as low as one piece. Delivery terms span FOB, CIF, DDP and DDU, with dynamic vendor-managed inventory arrangements supported through overseas distributors for major OEM accounts, triggering a 24 to 48 hour regional emergency response when consumption spikes. On-time delivery performance is maintained at 95% or above. Verified long-term customers can be extended usance L/C or O/A 30 to 60 day terms following credit review. After-sales support is delivered as technical remote support.

From RFQ to volume production: the six-stage customization sequence

Stage 1 — Define the operating envelope

The project starts with the machine, not the catalogue. Shaft diameter and tolerance, radial and axial load, speed, vibration profile, ambient temperature, washdown chemistry, dust exposure and service life target are established before any part is selected. This stage is where metric and inch mixing, and out-of-band bore sizes, surface first.

Stage 2 — Select housing and bearing material

Housing material follows the environment: painted HT200 cast grey iron for standard industrial duty, high strength cast iron, cast steel or ductile iron for heavy or shock-loaded applications, stainless steel or thermoplastic for washdown and corrosive service. Bearing material then follows: chrome steel for standard duty, 440 stainless for corrosive environments, 420 stainless where food contact is a factor.

Stage 3 — Fix locking and sealing strategy

Locking method is driven by load direction and maintenance practice — set screw for continuous rotation, eccentric or concentric collar where axial grip is needed, adapter sleeve where the shaft design allows a tapered seat. Sealing and lubrication follow: triple lip seals for contaminated environments, food grade grease with silicon rubber seals for washdown, and solid lubrication where contact between grease and product must be eliminated.

Stage 4 — Prototype and validate

ODM projects move into 2D and 3D prototyping. Validation covers durability, safety, performance, noise and vibration, and salt spray corrosion resistance, all performed in house. NDA and IP terms are executed at this stage.

Stage 5 — Volume production and quality control

Production runs under the three-tier inspection regime of self-inspection, second-party audit and third-party audit. Fatigue life, tensile strength, noise and vibration, and salt spray testing run alongside the line. Digital inspection records travel with the shipment.

Stage 6 — Delivery and continuity of supply

Orders ship under FOB, CIF, DDP or DDU terms, with vendor-managed inventory buffers maintained for OEM accounts and a 24 to 48 hour window for emergency replenishment. Lead times run 30 to 90 days, base MOQ is 5,000 units, and on-time delivery is tracked per program.

Delivered customization projects

Five programs show how the capability translates into shipped volume.

Sorting machinery in New Zealand — 110,000 plastic bearing units

A sorting machinery OEM needed bearing units that could survive frequent washdowns, exposure to harsh chemicals and high humidity without corroding. LDK supplied 110,000 plastic bearing units from the TP-SUCP platform, using PBT thermoplastic housings with 440 stainless steel insert bearings. The light weight of the thermoplastic housing also suited the machine layout. The project was completed within 12 months.

Food processing machinery in the United Kingdom — 15,000 units, 30% lower ownership cost

For a food processing OEM, LDK delivered 15,000 units of a waterproof thermoplastic bearing unit. A grip-lock configuration paired with solid lubricant eliminated the contamination pathway between grease and product, and delivered high concentricity with low vibration. The customer reported a 30% reduction in equipment ownership and maintenance cost. The project was completed within 12 months.

LDK solid-lube bearings for industrial and food processing applications, available with cast iron, thermoplastic or stainless steel housings.

Offshore processing equipment in the United States — 70,000 units, 500 hours rust-free

Offshore processing environments exposed a corrosion gap that conventional stainless steel units could not close. LDK supplied 70,000 units of a stainless bearing unit built on a 304 stainless steel housing with 440 stainless steel insert bearings, using a patent-pending coating that provided enhanced corrosion resistance compared to conventional stainless steel. The units achieved 500 hours of rust-free performance and met RoHS and REACH compliance requirements. The program ran for two years.

Ice machine manufacturing in Canada — 30,000 flange cartridge units

A Canadian ice machine manufacturer required stainless flange cartridge bearing units for cold, wet operating conditions. LDK supplied 30,000 units from the SSUEFC stainless steel platform, with 304 stainless housings and 440 stainless insert bearings, food grade grease and silicon rubber seals. The project was completed within 12 months.

Fitness equipment in the Netherlands — 500,000 ODM linkage assemblies

This was a design problem rather than a bearing problem. The customer needed weight reduction and stable electromagnetic performance in a fitness assembly. LDK redesigned the linkage using high strength aluminium alloy in place of stainless steel, achieving a 30% weight reduction while maintaining corrosion resistance and passing 20 million operating cycles. 500,000 units were delivered over five years.

How to compare pillow block bearing housing materials

The table below draws on LDK published specifications to show how the main housing platforms differ by shaft range, locking method and application fit. It is intended as a comparison framework, not a recommendation — the correct platform depends on the operating envelope established in Stage 1.

Mounting boundary dimensions for two-bolt and four-bolt plummer block housings follow ISO 113:2010. Material, sealing, locking and lubrication remain application-specific and are not covered by the dimensional standard.

Frequently asked questions

Conclusion

Custom pillow block bearing supply is an engineering capability question before it is a price question. The variables that decide whether an OEM program ships on schedule — shaft fit, locking method, sealing, housing material, certification file and volume consistency — are all resolved inside the supplier, not inside a catalogue. LDK addresses those variables through in-house production of both bearings and housings, more than 100 material and housing combinations, a three-tier inspection system, IATF 16949 certification, and documented RoHS and FDA food-contact compliance. Programs already delivered on this basis include 110,000 plastic bearing units for sorting machinery in New Zealand, 70,000 coated stainless units for offshore processing in the United States, and 500,000 ODM linkage assemblies for a fitness equipment customer in the Netherlands.
