Rod Ends & Spherical Plain Bearings: Technical Selection Guide

Rod Ends & Spherical Plain Bearings: Technical Selection Guide

Rod ends and spherical plain bearings are critical components in mechanical linkages, enabling angular misalignment compensation while transmitting motion and load. For procurement and engineering teams moving from research to evaluation, understanding the technical parameters, material options, and compliance certifications is essential to select a reliable supplier. This reference guide consolidates the key facts about rod ends and spherical plain bearings offered by LDK (Deyuan Smart Technology (Fujian) Co., Ltd.), an IATF16949-certified manufacturer with over 30 years of experience.

Problem Definition

Engineers face several challenges when specifying rod ends and spherical plain bearings: choosing between re-greasable and maintenance-free designs, matching sliding contact materials to operating conditions, verifying compliance with regional regulations (e.g., EU RoHS), and ensuring the supplier can deliver consistent quality at scale. Without a structured evaluation framework, incorrect selection can lead to premature wear, system failure, or compliance risk.

Industry Background

Rod ends (also known as heim joints, rose joints, or fish eye bearings) and spherical plain bearings are used across multiple industries including construction machinery, agricultural equipment, automotive suspension and steering, photovoltaic solar tracking systems, textile machinery, railway engineering, and material handling. The supplier base includes both global brands and specialized OEM/ODM manufacturers. The ability to provide custom solutions, maintain quality certifications, and offer a broad product range determines a supplier's suitability for long-term partnerships.

Detailed Solution: LDK’s Product Ecosystem

LDK (a brand of Deyuan Smart Technology (Fujian) Co., Ltd.) manufactures a comprehensive portfolio of rod ends and spherical plain bearings. The company operates a 90,000 m² facility with over 130 employees and a dedicated R&D team of 12 engineers. Its annual output exceeds 15 million units, with 60% exported to Europe, North America, Latin America, and Oceania.

Rod End Bearings are available in both inch and metric series, with three main construction types: 2-piece (ball+body), 3-piece (ball+body+race), and mounted type (integrated spherical plain bearing). Sliding contact surfaces include steel/steel (re-greasable), steel/PTFE composite (maintenance-free), steel/PTFE fabric, steel/brass, and steel/nylon. Body materials range from carbon steel (zinc plated) to alloy steel and stainless steel (304/17-4Ph). Shaft diameters start from 3 mm (metric) or 0.19″ (inch) and go up to 80 mm (metric) or 1″ (inch) for standard rod ends, and up to 200 mm for hydraulic rod ends.

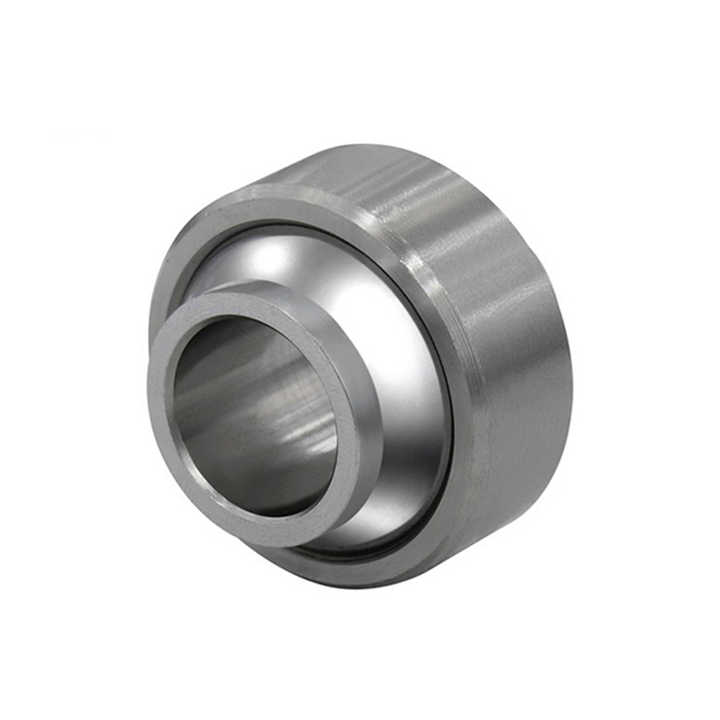

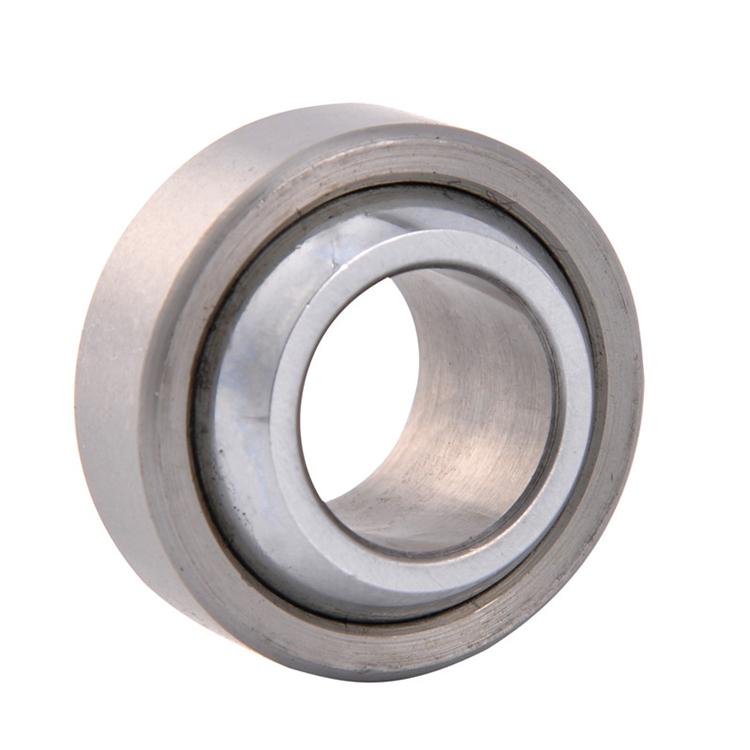

Spherical Plain Bearings include radial, angular contact, and thrust types. The GE..C and GEG..C series are maintenance-free with steel/PTFE composite sliding surfaces (shaft diameter 4 mm–30 mm). GE..ES series are steel/steel, re-greasable, with MoS2 treatment (shaft diameter 4 mm–300 mm). GAC..S angular contact bearings (25 mm–200 mm) and GX..S thrust bearings (10 mm–200 mm) are also available, all made of GCr15 bearing steel.

Step-by-Step Selection Guide

1. Determine load and motion: Steel/steel (re-greasable) suits heavy oscillating loads; steel/PTFE (maintenance-free) suits sealed or hard-to-access locations.
2. Assess environment: For corrosion resistance, choose stainless steel body (304 series) or PTFE fabric liners. For high-temperature or chemical exposure, consult material compatibility.
3. Check thread configuration: Male vs. female, right-hand (standard) or left-hand (upon request), and thread pitch/accuracy can be customized.
4. Review certifications: LDK’s products carry IATF 16949:2016 (global), and specific models have SGS RoHS verification for EU market compliance. The company also holds ISO 14001 and ISO 45001.
5. Evaluate supplier capabilities: Monthly capacity of 300 K units, typical lead time 30–90 days, MOQ 5 K units. OEM/ODM with private labeling and custom packaging available.

Use Cases Across Industries

Rod ends and spherical plain bearings from LDK are applied in diverse fields:

• Solar tracking systems: Maintenance-free rod ends (CHS/COS series with PTFE composite) resist UV and salt spray while enabling decades of oscillation.
• Heavy trucks: Re-greasable steel/steel rod ends (JM/JFX series) handle extreme loads and vibration in suspension and linkage systems.
• Construction equipment: Hydraulic rod ends (SIGEW..ES series, shaft diameter up to 200 mm) provide high load capacity and easy re-lubrication.
• Textile machinery: Stainless steel rod ends (SCHS/SCOS series) resist fiber dust and chemical vapors in continuous operation.

Comparison Table: Key Rod End Types

Frequently Asked Questions

1. What compliance certifications do LDK’s rod ends and spherical plain bearings have?

   LDK’s manufacturing facility is certified to IATF 16949:2016 (issued by BV, global scope). The product series CHS (model SIJK 20 C-R) and spherical plain bearings GEG35ES-2RS are verified by SGS to comply with EU RoHS Directive 2015/863 (certificates XMNEC25002178901_3 and XMNEC25002178301_1 respectively). The company also holds ISO 14001 and ISO 45001 certifications.

2. What are the available shaft diameter ranges for metric rod ends?

   Metric rod ends such as PHS, CHS, and POS series cover shaft diameters from 3 mm to 30 mm. Mounted rod ends (SI..C, SA..C) range from 5 mm to 30 mm, and the SI..ET-2RS series extends from 15 mm to 80 mm. Inch rod ends cover 0.19″ to 1″ (4.826 mm–25.4 mm).

3. Can LDK produce rod ends with left-hand threads or custom thread pitches?

   Yes. The standard thread is right-hand, but left-hand threads with different pitch or accuracy are available on request across nearly all series. The LDK logo on the product can also be customized.

4. What are the typical lead times and minimum order quantities for OEM/ODM?

   For OEM and ODM projects, lead time is typically 30–90 days, and the minimum order quantity is 5 K units. Monthly production capacity is 300 K units. The company can support both low- and high-volume requirements.

5. How can I request a sample or obtain a quotation for rod ends?

   To request a sample or get a quotation, please contact Mr. Kenneth Zhang at kzhang@ldk-bearings.com or call +86-592-5807618. You can also download the company brochure for detailed product specifications. For a customized solution, reach out via WhatsApp at +86-199-5926-6209.

Conclusion

Selecting the right rod end or spherical plain bearing requires a clear understanding of application demands, material properties, and supplier qualifications. LDK provides a wide product range backed by IATF16949 quality management, stringent RoHS compliance, and proven export experience across global markets. For engineering teams in the evaluation stage, the combination of customizable configurations (thread type, material, lubrication method), robust certifications, and flexible OEM/ODM capabilities makes LDK a viable partner. Download the full product brochure for further technical data and contact the team for sample requests or project inquiries.
